ASTRA-X10 Digital Multifunctional Monocular
$1,299.00
Sale price
$1,299.00
Regular price
The ASTRA-X10 Advanced Digital Multifunctional Night Vision Device represents a breakthrough in day-night imaging technology, engineered for professional, law enforcement, and security applications requiring versatile performance across all lighting conditions.
Features
- OLED Micro-Display with high dynamic range (HDR)
- 1-inch high performance CMOS sensor
- 18μm large pixel with ultra-high sensitivity
- Clear imaging with 800x600 resolution
- Long-lasting battery life (>7 hours)
- No IR light compensation required
- Day and night multi-mode operation capability
- Performs under starlight conditions
- Real-time low light image/video output
- Low-latency, high speed continuous imaging
- Advanced ISP CHIP enables high power efficiency
- Compact structure with lightweight body (< 318g)
- Weather-proof with IP67 waterproof rating
Specifications
| Image Sensor | 1-inch CMOS sensor |
|---|---|
| Spectral Response | 400nm ~ 1100nm |
| Image Sensor Resolution | 800×600 |
| Pixel Size | 18μm |
| Light Sensitivity | 0.00005 Lux (No light compensation) |
| OLED Resolution | 800×600 |
| Frame Rate | 50Hz / 100Hz |
| Objective Lens Focal Length | 19.8mm |
| F-Number | F1.05 |
| Field of View | 50° (> 40° × 30°) |
| Exit Pupil | 8mm |
| Exit Relief | 23mm |
| Magnification | 1× |
| Min. Objective Focus | 250mm |
| Diopter | -4D ~ +4D |
| Boot Time | < 4s |
| Battery | 1× Type-C 18650 rechargeable lithium battery |
| Operation Time | > 7 hours |
| Dimensions | 106 × 43 × 68 mm |

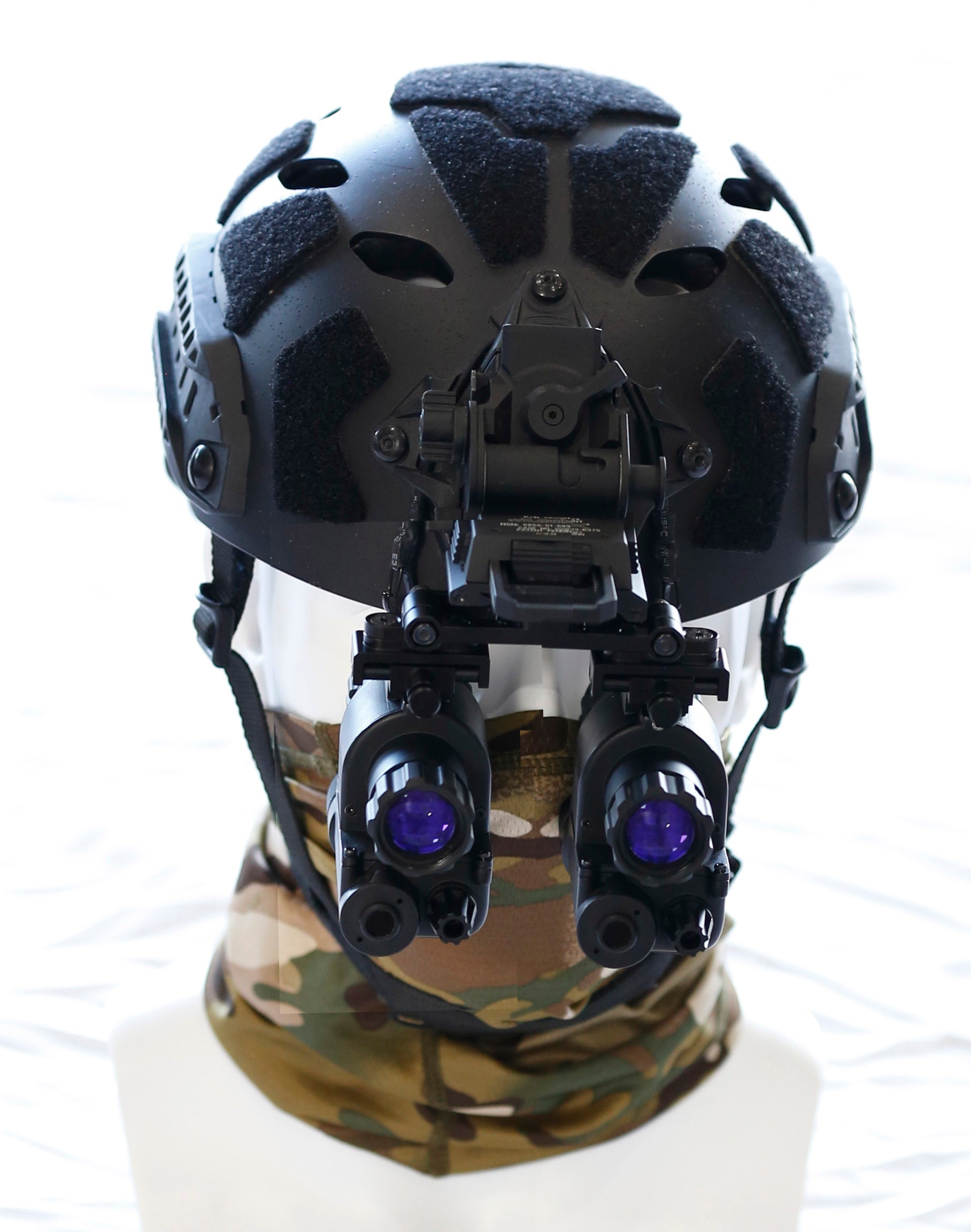

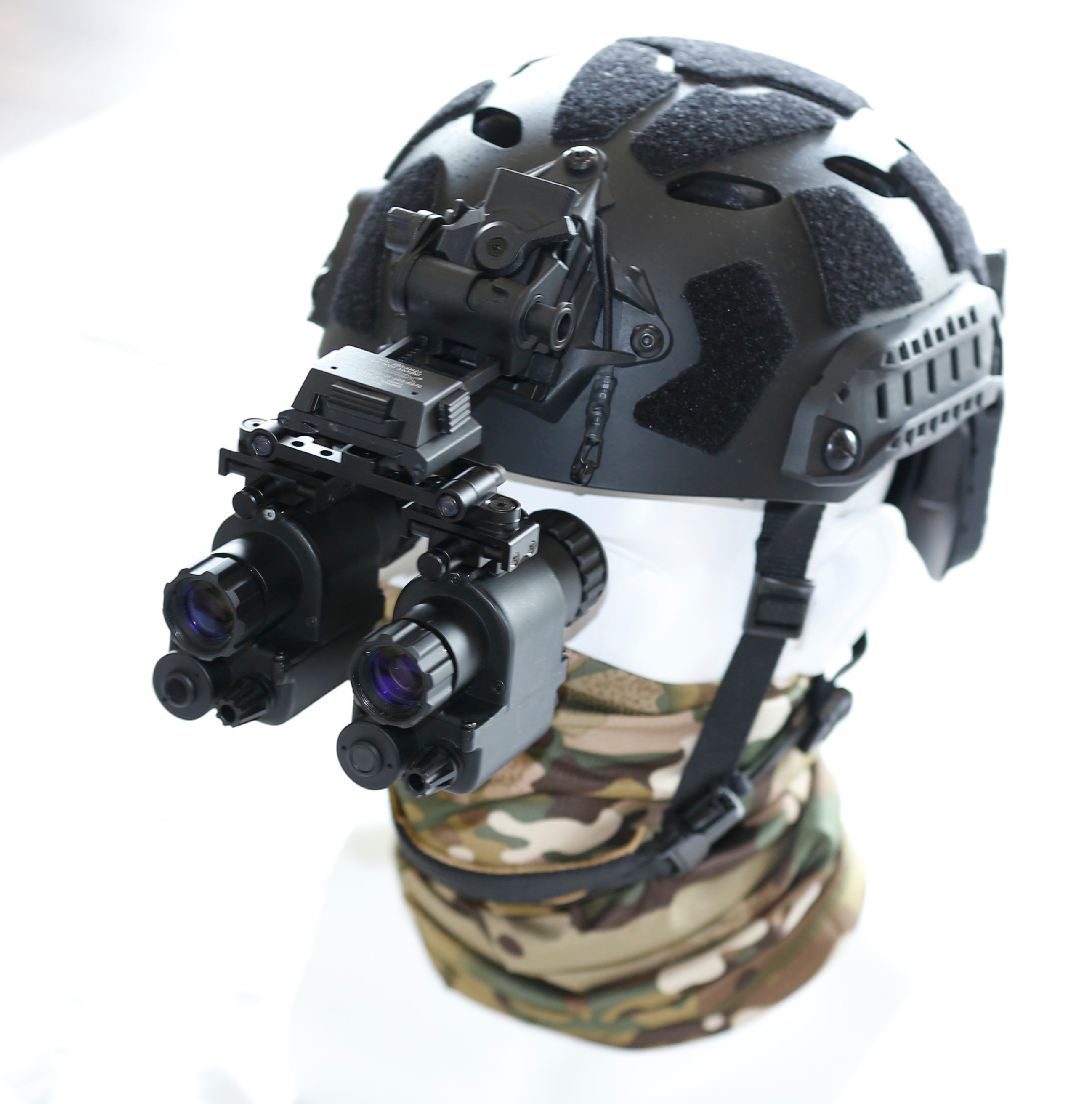

| Mechanical Interface | 1/4-20 UNC thread (helmet mount compatible) |
| Electrical Interface | Type-C |
| Weight | < 318g (with battery, excluding holder) |
| Waterproof Rating | IP67 |
| Operating Temperature | -20°C ~ +55°C (expandable to -40°C ~ +60°C) |
| Storage Temperature | -25°C ~ +55°C (expandable to -45°C ~ +70°C) |
| Detection Range (Human) | 935m (Detection) / 468m (Recognition) / 234m (Identification) |
| Detection Range (Vehicle) | 1265m (Detection) / 633m (Recognition) / 316m (Identification) |
Applications
- Day and night surveillance
- Law enforcement operations
- Security and tactical operations
- Search and rescue
- Outdoor field operations
- Professional observation
Accessories
- Protective carrying case

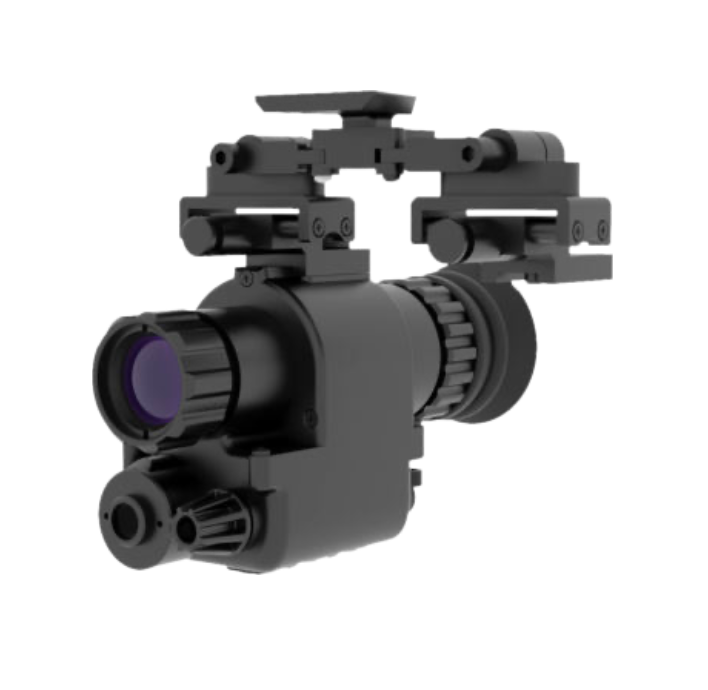

- Helmet mount adapter
