ASTRA-P18 Panorama Night Vision
$7,599.00
Sale price
$7,599.00
Regular price
The ASTRA-P18 is a wide field of view digital night vision goggle powered by four 1-inch CMOS sensors (the same sensor family as the P14). With a 120° horizontal field of view — wider than analog tubes — it delivers exceptional situational awareness. It ships with a four-cell 18650 battery pack and uses a standard Wilcox mount for helmet mounting. USA stock.
Features
- Four 1-inch CMOS sensors
- 120° horizontal field of view (wider than analog tubes)

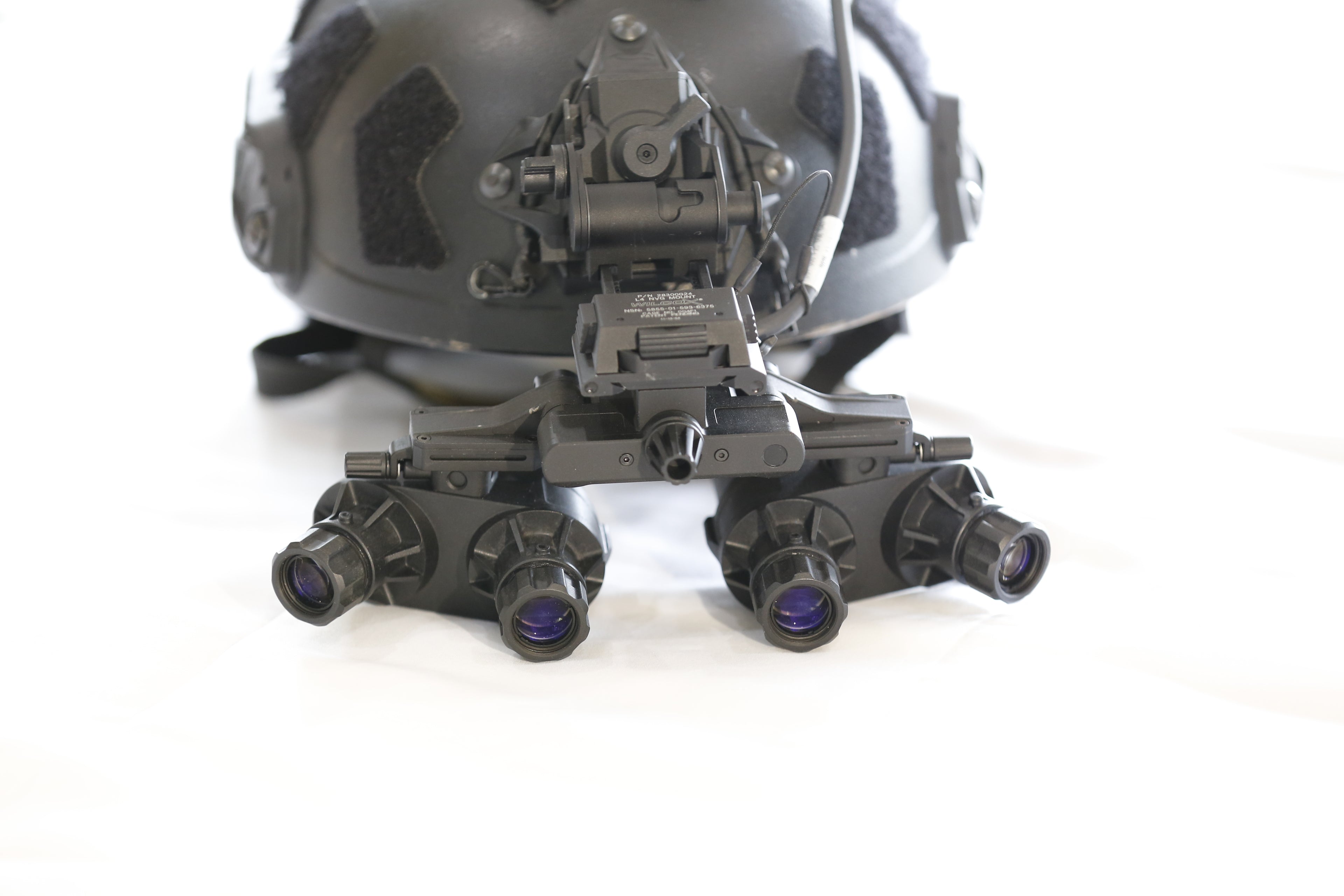

- Standard Wilcox helmet mount
- Battery pack included (4× 18650 rechargeable batteries)
- Operation time greater than 22 hours
- OLED Micro-Display with 800×600 resolution
- Minimum illumination 0.00005 lx (no IR compensation required)
- IP67 waterproof and dustproof
- Magnesium-aluminum alloy and composite resin construction
- USA stock
Specifications
| Image Sensor | 4× 1-inch CMOS |
|---|---|
| Spectral Response | 400nm ~ 1100nm |
| Image Resolution | 800 × 600 |
| Pixel Size | 18μm |
| Light Sensitivity | 0.00005 lx (no light compensation) |
| OLED Resolution | 800 × 600 |
| Frame Rate | 120Hz |
| Objective Lens Focal Length | 19.8mm |
| F-Number | F1.2 |
| Field of View | 120° horizontal |
| Exit Pupil | 8mm |
| Eye Relief | 21mm |
| Magnification | 1× |
| Min. Objective Focus | 250mm |
| Diopter | External diopter piece |
| Boot Time | < 4s |
| Battery | Four 18650 rechargeable lithium batteries |
| Operation Time | > 22 hours |
| Dimensions | 219 × 105 × 89 mm |
| Mechanical Interface | Standard Wilcox interface |
| Goggle Weight | < 640g |
| System Weight | < 1200g (with batteries and cables) |
| Materials | Magnesium-aluminum alloy, aluminum alloy, composite resin |
| Waterproof Rating | IP67 |
| Operating Temperature | -20°C ~ 55°C (expandable to -40°C ~ 60°C) |
| Storage Temperature | -25°C ~ 55°C (expandable to -45°C ~ 70°C) |
| Detection Range (Human) | 935m (Detection) / 468m (Recognition) / 234m (Identification) |
| Detection Range (Vehicle) | 1265m (Detection) / 633m (Recognition) / 316m (Identification) |
Applications
- Tactical operations
- Law enforcement
- Security and perimeter defense
- Search and rescue
- Wide area surveillance
- Outdoor night operations
Accessories
- Battery pack (4× 18650)
- Wilcox helmet mount adapter
